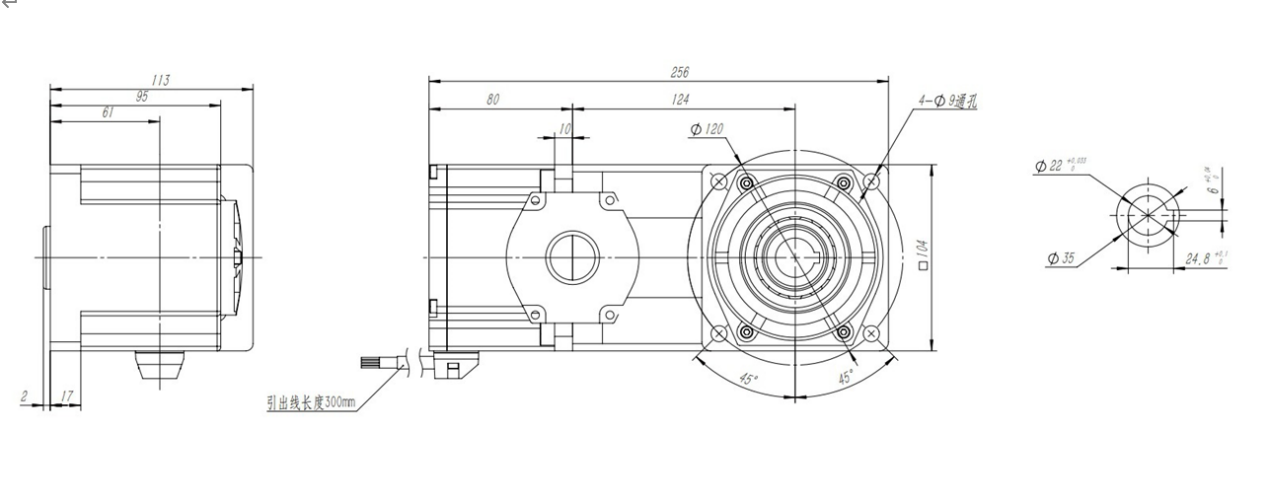

Dimensional diagram
Permissible torque with gear reduction (unit: N.m)
In the table (gray section), it indicates that the rotation direction is consistent with the motor’s direction
Motor model | Gear ratio | 10 | 20 | 30 | 50 | 100 | 200 |
|
Speed/power |
SPR6G RC | 3000/400 | 12.7 | 25.4 | 38.1 | 40 | 40 | 40 |
3000/200 | 6.4 | 12.8 | 19.2 | 32 | 40 | 40 |
1500/400 | 25.5 | 40 | 40 | 40 | 40 | 40 |
1500/200 | 12.7 | 25.4 | 38.1 | 40 | 40 | 40 |
300/500 | 15.9 | 31.8 | 40 | 40 | 40 | 40 |
1500/500 | 31.8 | 40 | 40 | 40 | 40 | 40 |
