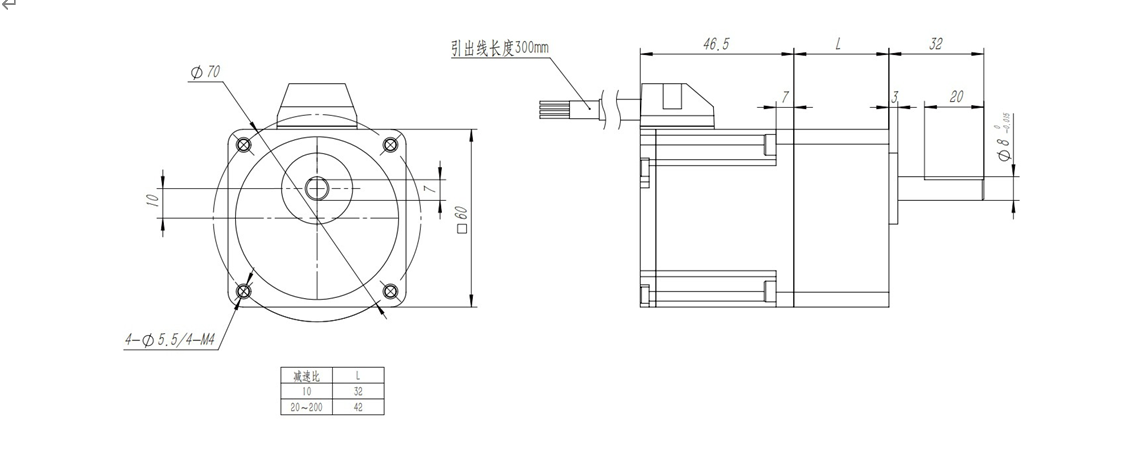

Dimensional diagram
Permissible torque with gear reduction (unit: N.m)
In the table (gray section), it indicates that the rotation direction is consistent with the motor’s direction
Motor model | Gear ratio | 10 | 20 | 30 | 50 | 100 | 200 |
Speed/power |
|
SPR2G K | 3000/25 | 0.8 | 1.6 | 2.4 | 3 | 3 | 3 |
3000/15 | 0.5 | 1 | 1.5 | 2.5 | 3 | 3 |
1500/25 | 1.6 | 3 | 3 | 3 | 3 | 3 |
1500/15 | 1 | 2 | 3 | 3 | 3 | 3 |
