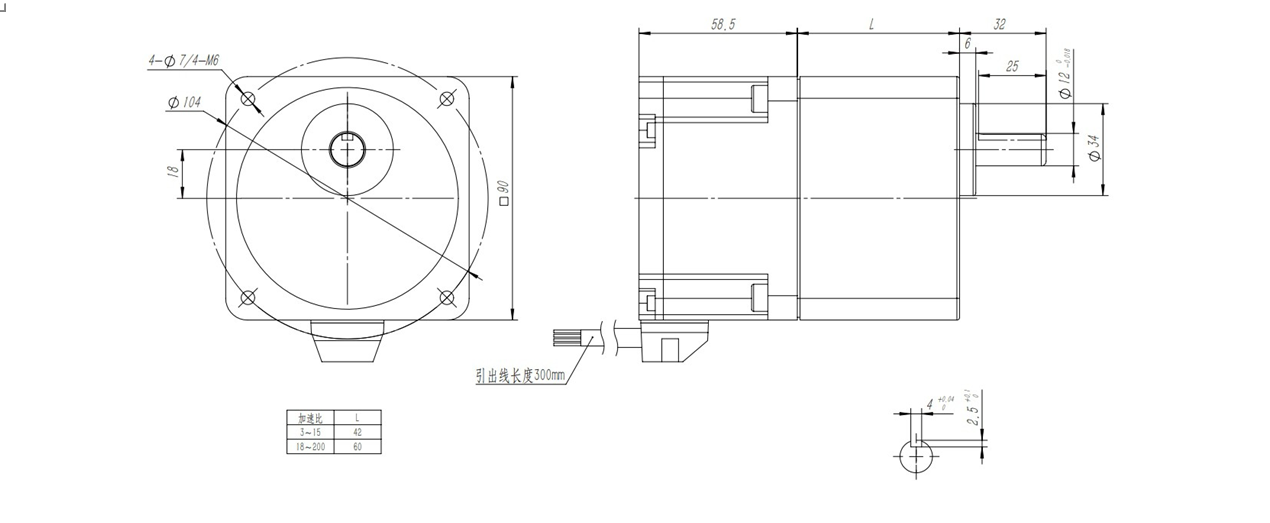

Dimensional diagram
Permissible torque with gear reduction (unit: N.m)
In the table (gray section), it indicates that the rotation direction is consistent with the motor’s direction
Motor model | Gear ratio | 10 | 20 | 30 | 50 | 100 | 200 |
|
Speed/power |
SPR5G K | 3000/120 | 3.8 | 7.6 | 11.4 | 19 | 20 | 20 |
3000/900 | 2.9 | 5.8 | 8.7 | 14.5 | 20 | 20 |
1500/120 | 7.6 | 15.2 | 20 | 20 | 20 | 20 |
1500/90 | 5.7 | 11.4 | 17.1 | 20 | 20 | 20 |
