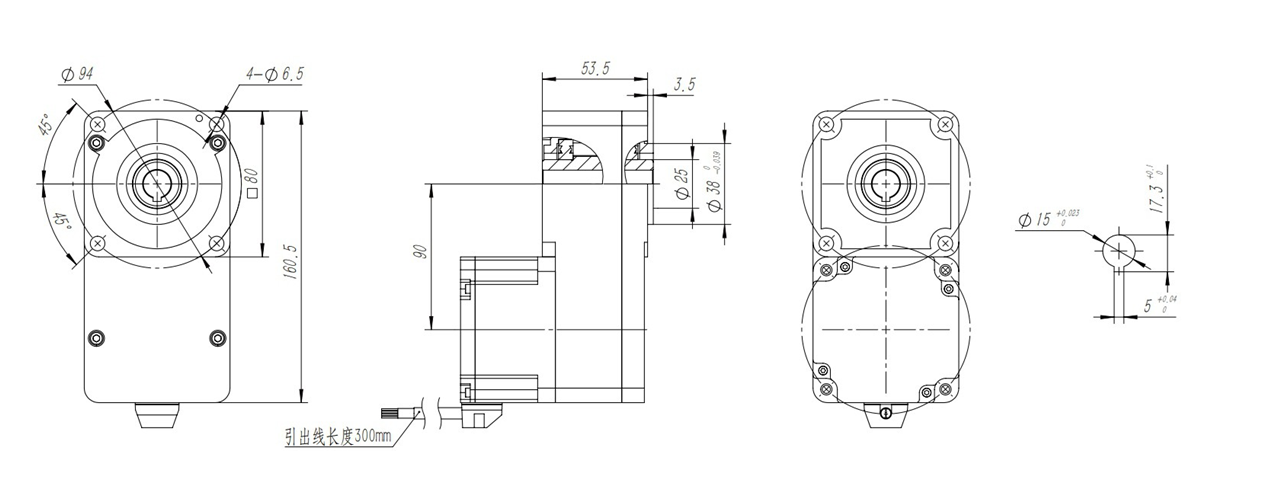

Dimensional diagram
Permissible torque with gear reduction (unit: N.m)
In the table, all gear ratios have a rotation direction opposite to the motor’s direction
Motor model | Gear ratio | 10 | 20 | 30 | 50 | 100 | 200 |
|
Speed/power |
SPR4G LC | 3000/60 | 1.9 | 3.8 | 5.7 | 9.5 | 19 | 38 |
3000/40 | 1.3 | 2.6 | 3.9 | 6.5 | 13 | 26 |
1500/60 | 3.8 | 7.6 | 11.4 | 19 | 38 | 40 |
1500/40 | 2.5 | 5 | 7.5 | 12.5 | 25 | 40 |
